Receivers

Digital Media Receivers

NAKAMICHI NQ532BD

GENERAL / Operating Voltage 14.4V(10.8V allowable) / Maximum Current 10A / Installtion Size(W×H×D) 182mm×53mm×115mm / Net Weight 0.5kg / Fuse Small fuse 10A(Red)
AUDIO / Maximum Output Power 50W×4 / Speaker Impedance 4-8ohm / Pre-output Level 4V
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1620KHz / Preset 18 FM,12 AM
USB / StandardUSB1.1,USB2.0 Full Speed / Audio MP3/WMA/APE/FLAC/AAC/M4A/WAV / Front USB Read/charge DC 5V 2A
BLUETOOTH / Version Bluetooth 5.0 / Frequency Range 2.402GHz - 2.480GHz / Communication Range Line of sight approx.5m / Profile HPF1.6/A2DP/AVR/SP

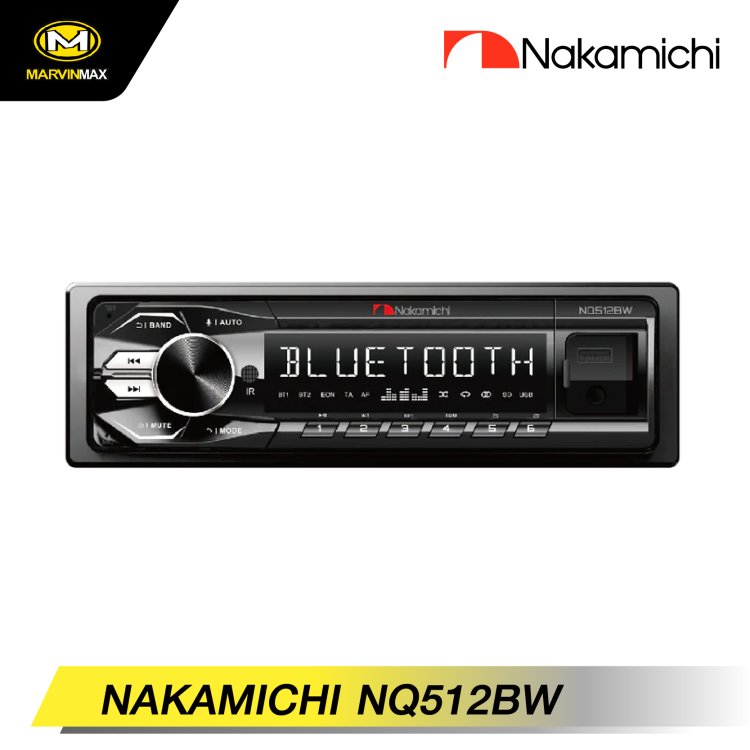

NAKAMICHI NQ512BW

GENERAL / Power supply Requirement DC12V / Maximum power output 50w x 4CH / Speaker impedance 4-8 Ohm / Unit Dimensions（WxHxD） 178x111x50mm / Fuse 10A
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1620KHz / Preset 18 FM,12 AM
USB INDEX / Usable Audio Formats MP3/WMA / USB Port Type 2.0 / USB Maximum Capacity 64G / USB Charging 5V/1A / Frequency Response 20Hz-20 KHz / S/N Ratio 60dB
BLUETOOTH / Version Bluetooth 5.1BT / Profile supports A2DP，AVRCP/HFP / Range of frequency 2.4 GHz spectrum

NAKAMICHI NQ512BG

GENERAL / Power supply Requirement DC12V / Maximum power output 50w x 4CH / Speaker impedance 4-8 Ohm / Unit Dimensions（WxHxD） 178x111x50mm / Fuse 10A
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1620KHz / Preset 18 FM,12 AM
USB INDEX / Usable Audio FormatsMP3/WMA / USB Port Type2.0USB Maximum Capacity 64G / USB Charging 5V/1A / Frequency Response 20Hz-20 KHz / S/N Ratio 60dB
BLUETOOTH / Version Bluetooth 5.1BT / Profile supports A2DP，AVRCP/HFP / Range of frequency 2.4 GHz spectrum

NAKAMICHI NQ512BR

GENERAL / Power supply Requirement DC12V / Maximum power output 50w x 4CH / Speaker impedance 4-8 Ohm / Unit Dimensions（WxHxD） 178x111x50mm / Fuse 10A
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1620KHz / Preset 18 FM,12 AM
USB INDEX / Usable Audio FormatsMP3/WMA / USB Port Type2.0USB Maximum Capacity 64G / USB Charging 5V/1A / Frequency Response 20Hz-20 KHz / S/N Ratio 60dB
BLUETOOTH / Version Bluetooth 5.1 / BT Profile supports A2DP，AVRCP/HFP / Range of frequency 2.4 GHz spectrum

NAKAMICHI NQ512BB

GENERAL / Power supply Requirement DC12V / Maximum power output 50w x 4CH / Speaker impedance 4-8 Ohm / Unit Dimensions（WxHxD） 178x111x50mm / Fuse 10A
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1620KHz / Preset 18 FM,12 AM
USB INDEX / Usable Audio FormatsMP3/WMA / USB Port Type2.0USB Maximum Capacity 64G / USB Charging 5V/1A / Frequency Response 20Hz-20 KHzS/N Ratio 60dB
BLUETOOTH / Version Bluetooth 5.1BT / Profile supports A2DP，AVRCP/HFP / Range ofฟ frequency 2.4 GHz spectrum

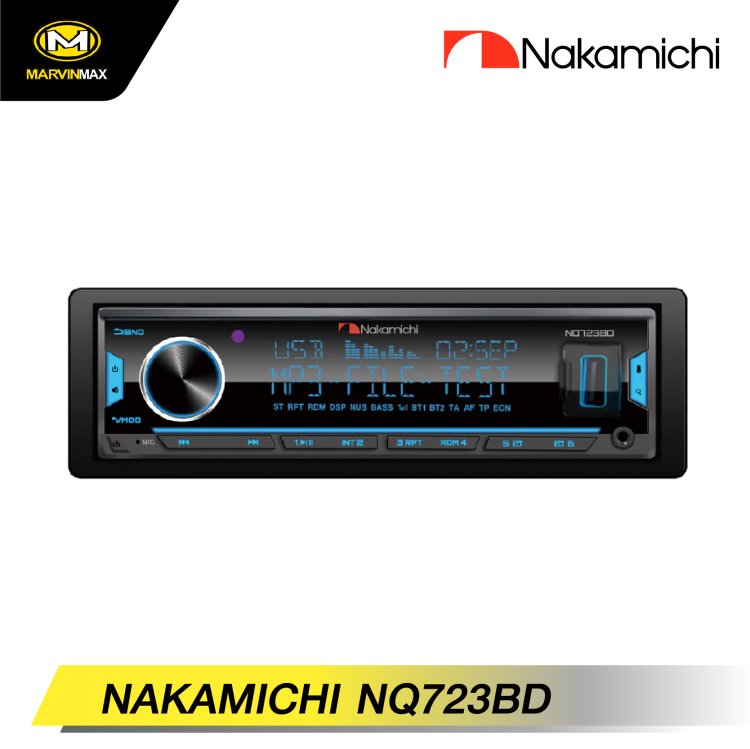

NAKAMICHI NQ723BD

GENERAL / Operating Voltage 14.4V(10.8V allowable) / Maximum Current 10A / Installtion Size(W×H×D) 182mm×53mm×115mm / Net Weight 0.5kg / Fuse Small fuse 10A(Red)
AUDIO / Maximum Output Power 50W×4 / Speaker Impedance 4-8ohm / Pre-output Level 4V
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1710KHz / Preset 18 FM,12 AM
USB / USB StandardUSB1.1,USB2.0 Full Speed / Audio MP3/WMA/APE/FLAC/AAC/M4A/WAV / Front USB Read/charge DC 5V 2A
BLUETOOTH / Version Bluetooth 5.0 / Frequency Range 2.402GHz - 2.480GHz / Communication Range Line of sight approx.10m / Profile HPF1.6/A2DP/AVR/SPP

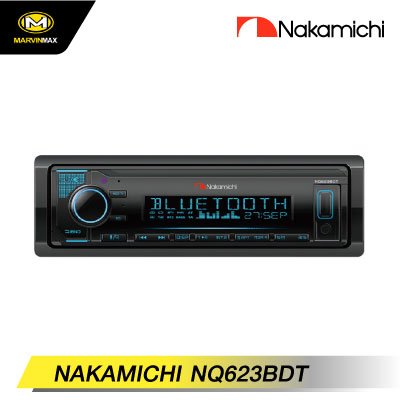

NAKAMICHI NQ623BDT

GENERAL / Operating Voltage 14.4V(10.8V allowable) / Maximum Current 10A / Installtion Size(W×H×D) 182mm×53mm×115mm / Net Weight 0.5kgFuse Small / fuse 10A(Red)
AUDIO / Maximum Output Power 50W×4 / Speaker Impedance 4-8ohm / Pre-output Level 4V
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1710KHz / Preset 18 FM,12 AM
USB / USB StandardUSB1.1,USB2.0 Full Speed / Audio MP3/WMA/APE/FLAC/AAC/M4A/WAV / Front USB Read/charge DC 5V 1A
BLUETOOTH / Version Bluetooth 5.0 / Frequency Range 2.402GHz - 2.480GHz / Communication Range Line of sight approx.10m / Profile HPF1.6/A2DP/AVR/SPP

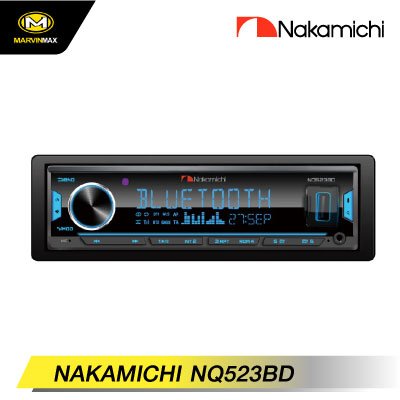

NAKAMICHI NQ523BD

GENERAL / Operating Voltage 14.4V(10.8V allowable) / Maximum Current 10A / Installtion Size(W×H×D) 182mm×53mm×115mm / Net Weight 0.5kg / Fuse Small fuse 10A(Red)
AUDIO / Maximum Output Power 50W×4 / Speaker Impedance 4-8ohm / Pre-output Level 2V
RADIO / FM Frequency Range 87.5MHz-108.0MHz / AM Frequency Range 522KHz-1710KHz / Preset 18 FM,12 AM
USB / USB StandardUSB1.1,USB2.0 Full / SpeedAudio MP3/WMA/APE/FLAC/AAC/M4A/WAV / Front USB Read/charge DC 5V 1A
BLUETOOTH / Version Bluetooth 5.0 / Frequency Range 2.402GHz - 2.480GHz / Communication Range Line of sight approx.10m / Profile HPF1.6/A2DP/AVR/SPP

NAKAMICHI NQ712BT

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×108×50mm / Weight 0.5 kg / Fuse 10A
RADIO FM / Frequency Range 87.5MHz-107.9MHz（USA）/ 87.5MHz-180.0MHz（EUROPE） / Channel step 200 KHz(USA) / 50KHz(EUROPE) AM / Frequency Range 530KHz-1710KHz（USA）/ 522-1620KHz（EUROPE） / Channel step 10 KHz(USA) / 9KHz(EUROPE)
USB / Usable Audio Fromats MP3/WMA/FLAC / USB Port Type 2.0 / USB charging 5V/1A / Frequency Response 20Hz-20KHz / S/N Ratio 60dB
BT / BT Profile supports A2DP,AVRCP,HFP / Range of frequency 2.4GHz spectrum

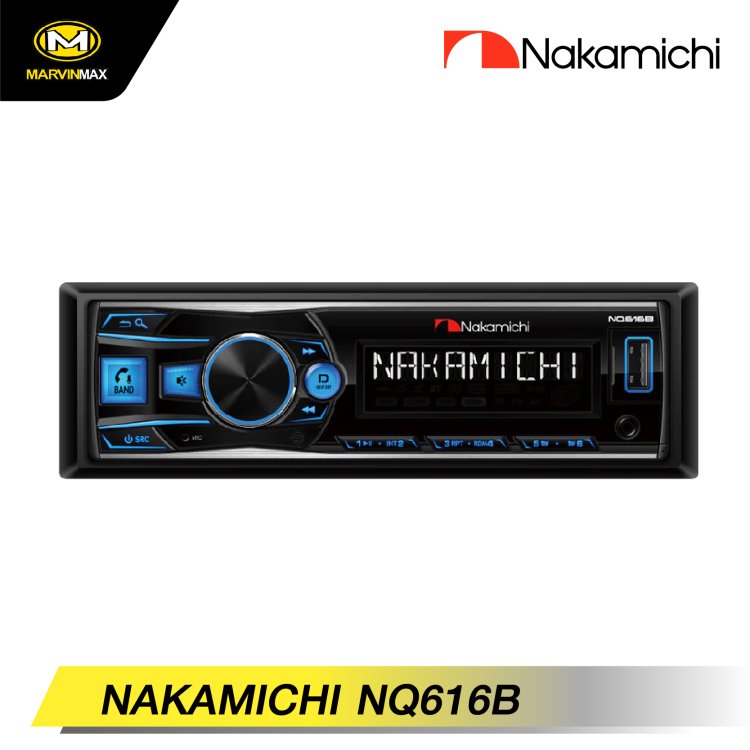

NAKAMICHI NQ616B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×108×50mm / Weight 0.5 kg / Fuse 10A
RADIO / FM Frequency Range 87.5MHz-107.9MHz（USA）87.5MHz-108.0MHz（EUROPE） / Channel step 200KHz(USA)50KHz(EUROPE) / AM Frequency Range 530KHz-1710KHz（USA）522KHz-1620KHz（EUROPE） / Channel step 10KHz(USA)9KHz(EUROPE)
USB / Usable Audio Fromats MP3/WMA/FLAC / USB Port Type 2.0USB charging 5V/1A / Frequency Response 20Hz-20KHz / S/N Ratio 60dB
BT / BT Profile Supports A2DP,AVRCP,HFP / Range of Frequency 2.4GHz spectrum

NAKAMICHI NQ615B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×108×50mm / Weight 0.5 kg / Fuse 10A
RADIO / Frequency Range（FM） 87.5MHz-108.0MHz（EUROPE）/ Frequency Range（AM） 522-1620KHz
USB / Usable Audio Fromats MP3/WMA/FLAC / USB Port Type 2.0USB charging 5V/1A
BT / BT Profile Supports A2DP,AVRCP,HFP / Range of Frequency 2.4GHz

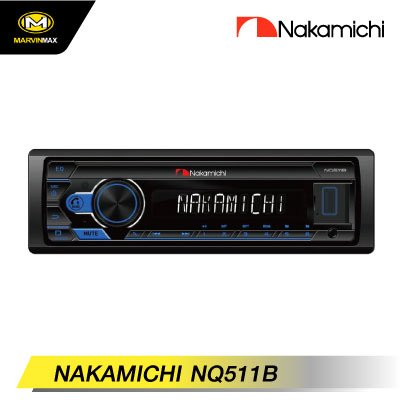

NAKAMICHI NQ511B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×108×50mm / Weight 0.5 kgFuse 10A
RADIO FM / Frequency Range 87.5MHz-107.9MHz（USA）/ 87.5MHz-108.0MHz（EUROPE） / Channel step 200 KHz(USA) / 50KHz(EUROPE) AM / Frequency Range 530KHz-1710KHz（USA） / 522-1620KHz（EUROPE） / Channel step 10 KHz(USA) / 9KHz(EUROPE)
DVD/USB / Usable Audio Fromats MP3/WMA/FLAC / USB Port Type 2.0USB charging 5V/1A / Frequency Response 20Hz-20KHzS/N Ratio 60dB
BT / BT Profile Supports A2DP,AVRCP,HFP / Range of Frequency 2.4GHz spectrum

NAKAMICHI NQ721BE

NAKAMICHI NQ722BD

GENERAL / Screen Size 3.4" / FM Frequency Range 87.9-107.9MHZ / Bluetooth Format HFP/HSP/A2DP/AVRCP / Size(WxHxD) 178x108x50 / Net Weight 0.5kg
DISPLAY / LCD Type 2-Line VA / LCD Digits 12 bit / LCD Size 80x20mm/3.4 inch / Key Illumination Color Blue
AUDIO / Max Power 4x50W / RMS Power 4x35W / Pre-output Channel 4 channel / Pre-output 4V / Preset EQ User/Flat/Classic/Rock/Pop
DSP SPEC / EQ 25 bandHPF Yes / HPF Frequency 30Hz-250Hz / LPF Yes / LPF Frequency 1.25KHz-20KHz / Delay Yes (0-25ms) / Bass Boost Yes / Bass Boost Low Frequency 20Hz -100Hz / Loundness Low Frequency 20-1000Hz / Loundness High Frequency 10KHz-20KHz

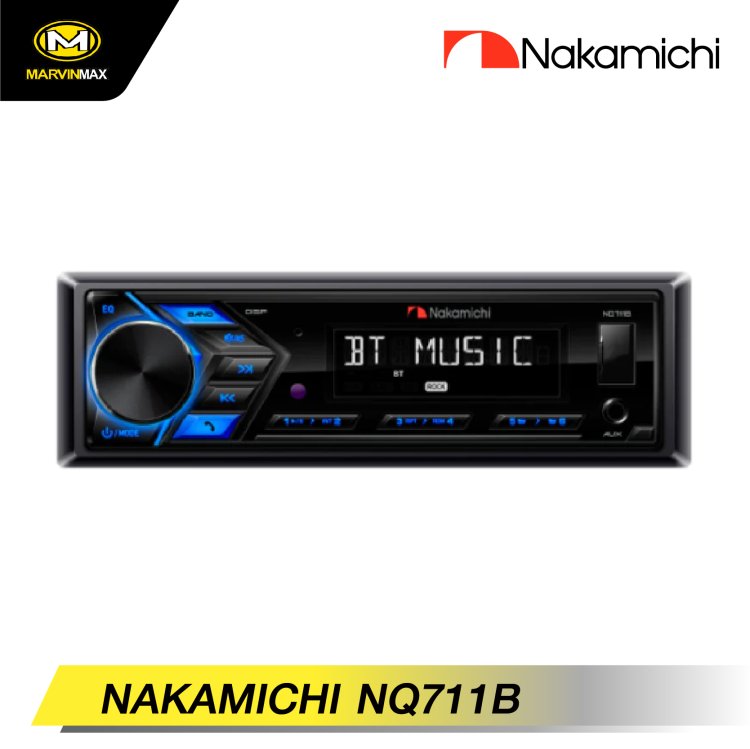

NAKAMICHI NQ711B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W x 4CH / Speaker impedance 4-8 Ohm / Unit Dimensions（WxHxD） 178×108×50mm / Weight 0.5kgFuse 15A
RADIO FM Frequency Range 87.5MHz-107.9MHz（USA）87.5MHz-108.0MHz（EUROPE）AM Frequency Range 530KHz-1710KHz（USA）522KHz-1620KHz（EUROPE）
USB / Usable Audio FormatsMP3/WMA/FLAC / USB Port Type 2.0USB Charing 5V/1A / Frequency Response 20Hz- 20KHz / S/N Ratio 60dB
BT / BT ProfileA2DP,AVRCP,HFP / Range of frequency 2.4GHz spectrum

CD/DVD Receivers

NAKAMICHI NQ822B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×160×50mm / Weight： 1.3 kg / Fuse 10A
RADIO FM / Frequency Range 87.5MHz-107.9MHz（USA）/ 87.5MHz-108.0MHz（EUROPE） / Channel step 200 KHz(USA) / 50KHz(EUROPE) AM / Frequency Range 530KHz-1710KHz（USA）/ 522-1620KHz（EUROPE） / Channel step 10 KHz(USA) / 9KHz(EUROPE)
USB / Usable Audio Fromats CD/MP3/WMA / USB Port Type 2.0USB charging 5V/1A / Frequency Response 20Hz-20KHz / S/N Ratio 60dB
BT / Supported Bluetooth Profiles A2DP,AVRCP,HFP / Frequency Range 2.4GHz spectrum

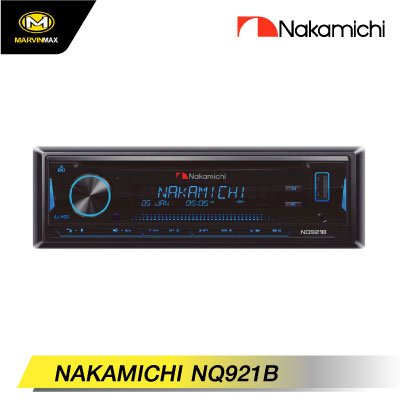

NAKAMICHI NQ921B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×160×50mm / Weight 1.3 kgFuse 10A
RADIO FM / Frequency Range 87.5MHz-107.9MHz /（USA）87.5MHz-108.0MHz（EUROPE） / Channel step 200 KHz(USA) / 50KHz(EUROPE) AM / Frequency Range 530KHz-1710KHz（USA）/ 522-1620KHz（EUROPE）/ Channel step 10 KHz(USA) / 9KHz(EUROPE)
DVD/USB / Usable Audio Fromats CD/MP3/WMA / USB Port Type 2.0USB charging 5V/1A / Frequency Response 20Hz-20KHz / S/N Ratio 60dB
BT / BT Profile Supports A2DP,AVRCP,HFP / Range of Frequency 2.4GHz spectrum

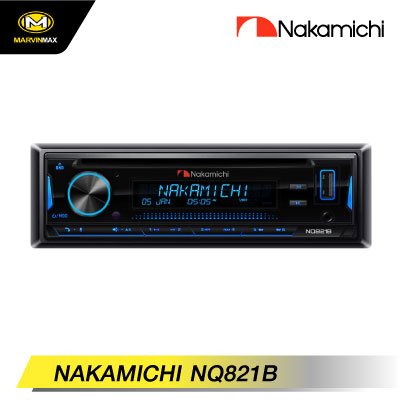

NAKAMICHI NQ821B

GENERAL / Power supply Requirement DC 12V / Maximum power output 50W ×4CH / Sperker impedance 4-8Ohm / Unit Dimensions(W×H×D) 178×160×50mm / Weight： 1.3 kgFuse 10A
RADIO FM / Frequency Range 87.5MHz-107.9MHz（USA） / 87.5MHz-108.0MHz（EUROPE） / Channel step 200 KHz(USA) / 50KHz(EUROPE) AM / Frequency Range 530KHz-1710KHz（USA） / 522-1620KHz（EUROPE） / Channel step 10 KHz(USA) / 9KHz(EUROPE)
USB / Usable Audio Fromats CD/MP3/WMA / USB Port Type 2.0USB charging 5V/1A / Frequency Response 20Hz-20KHz / S/N Ratio 60dB
BT / Supported Bluetooth Profiles A2DP,AVRCP,HFP / Frequency Range 2.4GHz spectrum

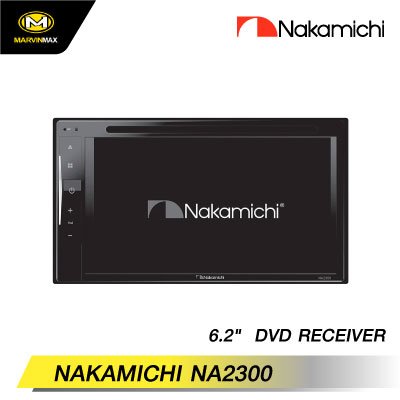

NAKAMICHI NA2300

6.2" DVD RECEIVER

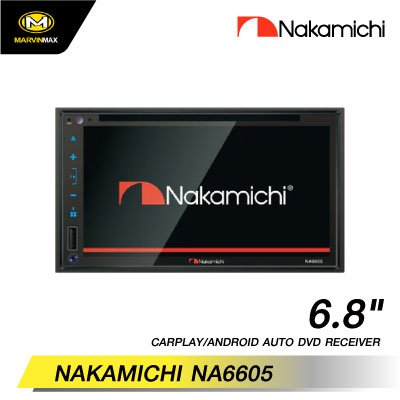

NAKAMICHI NA6605

6.8" CARPLAY/ANDROID AUTO DVD RECEIVER

NAKAMICHI NA3610

6.8" GPS READY DVD RECEIVER

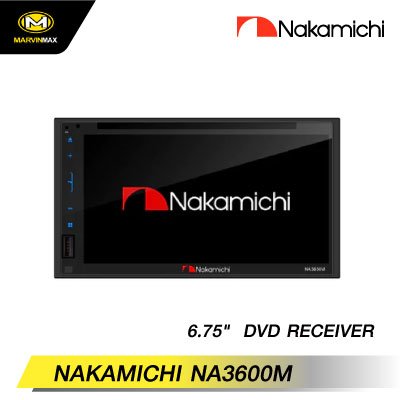

NAKAMICHI NA3600M

6.75" DVD RECEIVER

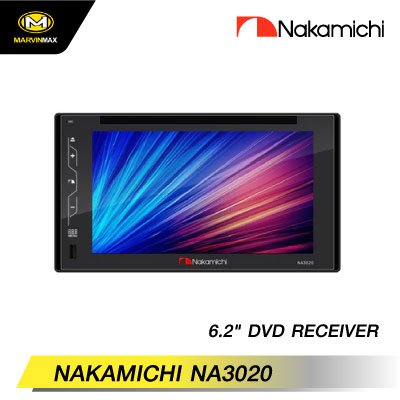

NAKAMICHI NA3020

6.2" DVD RECEIVER

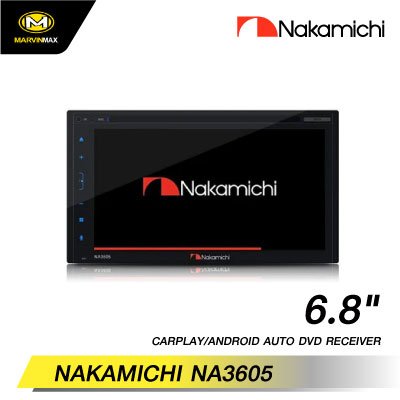

NAKAMICHI NA3605

6.8" CARPLAY/ANDROID AUTO DVD RECEIVER
