ALPINE DDL-R170S ราคา 16,900.-

ALPINE PXA-H100 ราคา 9,900.-

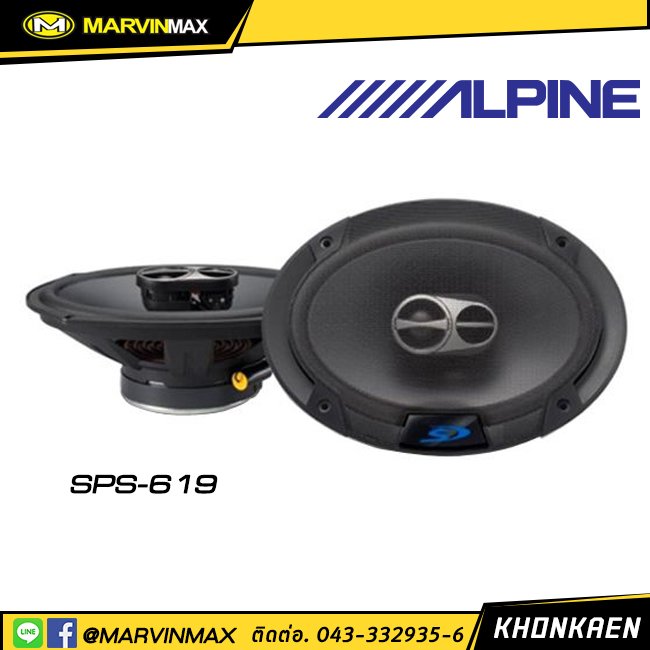

ALPINE SPS-619

GENERAL
6x9”(16x24cm) COAXIAL 3-WAY SPEAKER
250W Peak Power /RMS Power 85 Watts
Frequency Response 65Hz-23kHz
Impedence: 4 Ohms
Sensitivity: 90dB (1W/1m)
In-line crossover network
Silk Dome Tweeter
POWER HANDLING
Power Handling Capacity (RMS): 85 Watts
Power Handling Capacity (Peak): 260 Watts

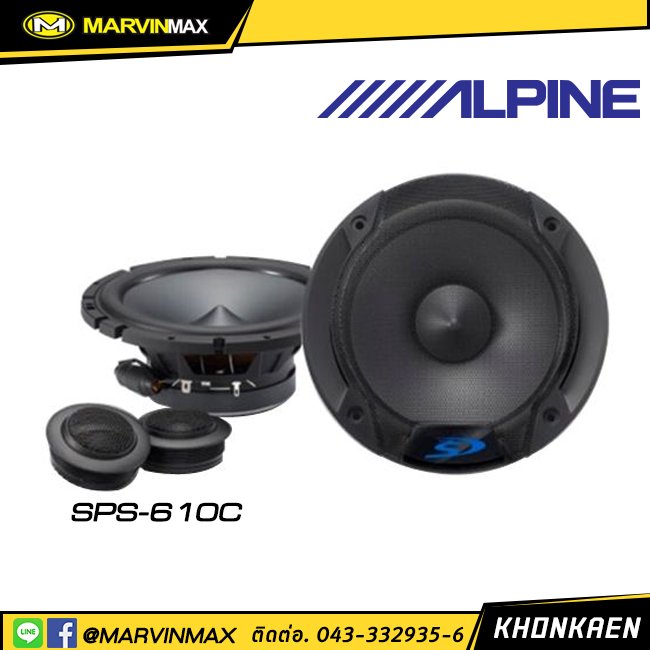

ALPINE SPS-610C

GENERAL
6-1/2”(16.5cm) COMPONENT 2-WAY SPEAKER
240W Peak Power /RMS Power 80 Watts
Frequency Response 70Hz-22kHz
In-line crossover network
Silk Dome Tweeter
Sensitivity : 88dB (1W/1m)
POWER HANDLING
Power Handling Capacity (RMS) : 80 Watts
Power Handling Capacity (PEAK) : 240 Watts

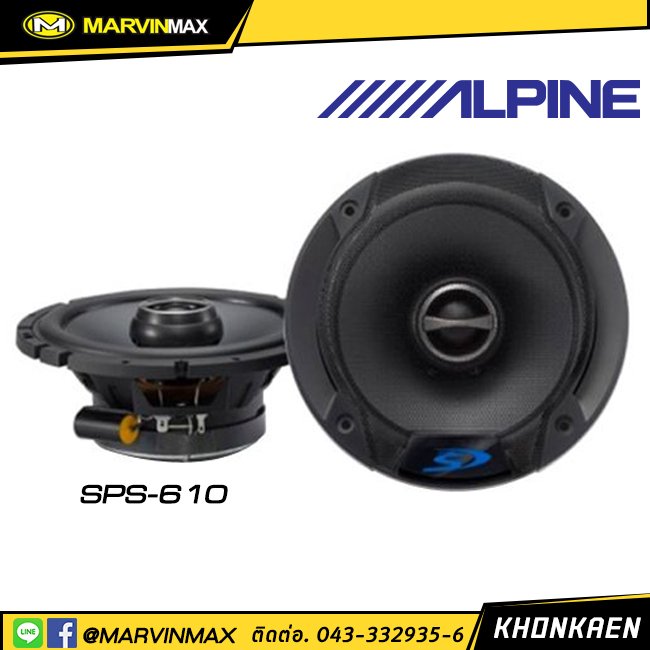

ALPINE SPS-610

GENERAL
Peak Power Handling: 240W
RMS Power Handling: 80W
Nominal Impedance: 4ohms
Frequency Response: 70Hz - 22kHz
Mounting Depth: 56mm
KTE-S610G Grilles Included
HD Polymer Frame
Sensitivity: 88dB (1W/1m)
POWER HANDLING
Power Handling Capacity (RMS): 80 Watts
Power Handling Capacity (Peak): 240 Watts

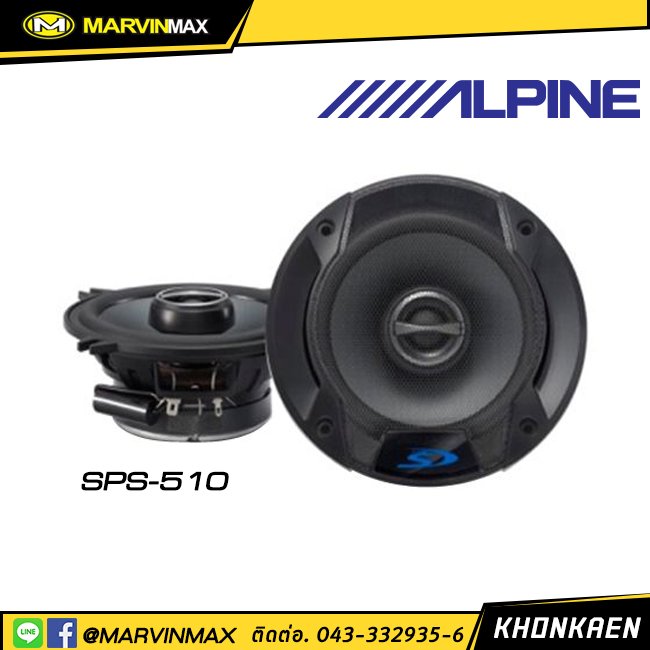

ALPINE SPS-510

GENERAL
5-1/4”(13cm) COAXIAL 2-WAY SPEAKER
170W Peak Power /RMS Power 55 Watts
Frequency Response 80Hz-22kHz
Impedence: 4 Ohms
Sensitivity: 87dB (1W/1m)
In-line crossover network
Silk Dome Tweeter
POWER HANDLING
Power Handling Capacity (RMS): 55 Watts
Power Handling Capacity (Peak): 170 Watts

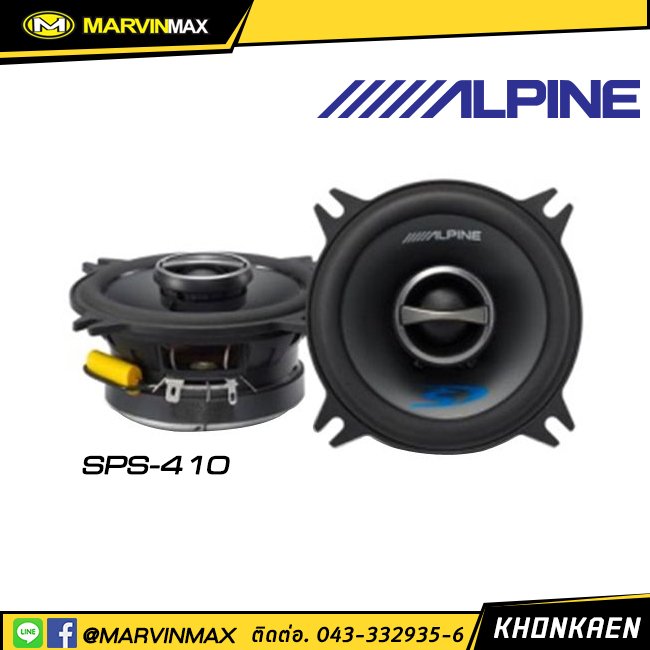

ALPINE SPS-410

GENERAL
4”(10cm) COAXIAL 2-WAY SPEAKER
140W Peak Power /RMS Power 45 Watts
Frequency Response 97Hz-22kHz
Impedence: 4 Ohms
Sensitivity: 86dB (1W/1m)
In-line crossover network
Silk Dome Tweeter
POWER HANDLING
Power Handling Capacity (RMS): 45 Watts
Power Handling Capacity (Peak): 140 Watts

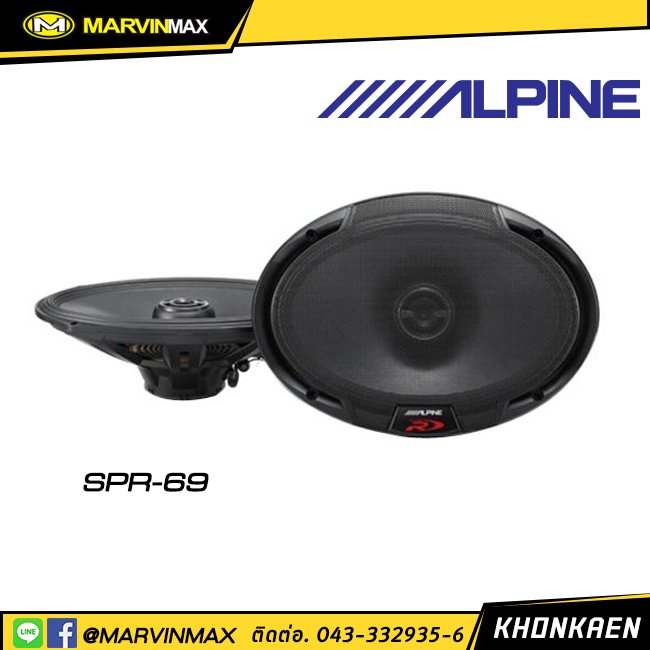

ALPINE SPR-69

GENERAL
Sensitivity: 87dB /W(1m)
Impedence: 4 Ω
Frequency Response: 60Hz - 29kHz
POWER HANDLING
Power Handling Capacity (Peak): 300 Watts
Power Handling Capacity (RMS): 100 Watts

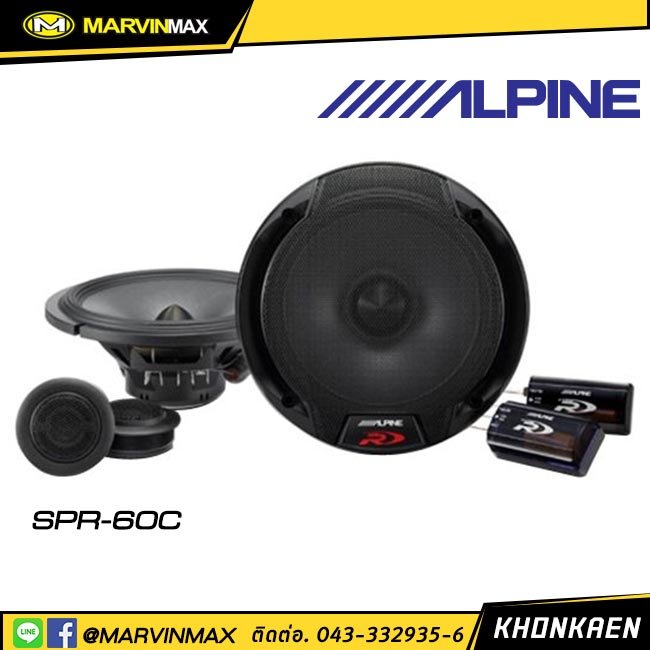

ALPINE SPR-60C

GENERAL
Sensitivity: 87dB /W(1m)
Impedence: 4 Ω
Frequency Response: 65Hz - 29kHz
POWER HANDLING
Power Handling Capacity (Peak): 330 Watts
Power Handling Capacity (RMS): 110 Watts

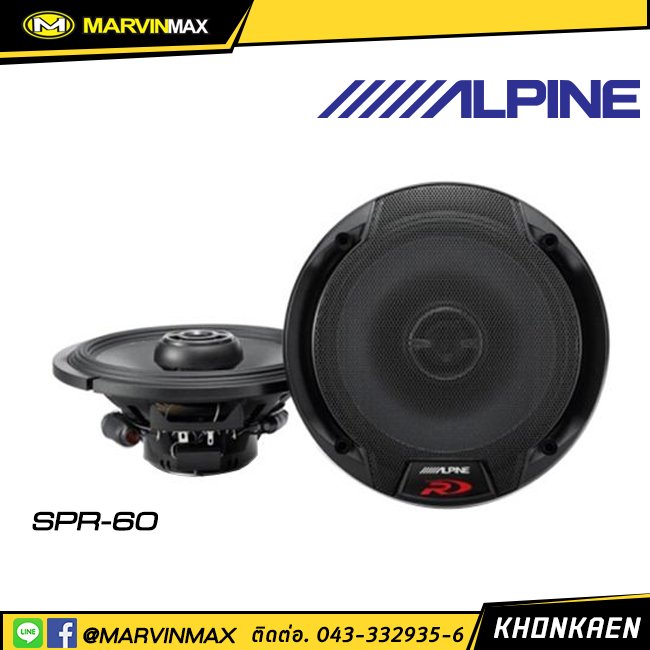

ALPINE SPR-60

GENERAL
Sensitivity: 87dB /W(1m)
Impedence: 4 Ω
Frequency Response: 65Hz - 29kHz
POWER HANDLING
Power Handling Capacity (Peak): 300 Watts
Power Handling Capacity (RMS): 110 Watts

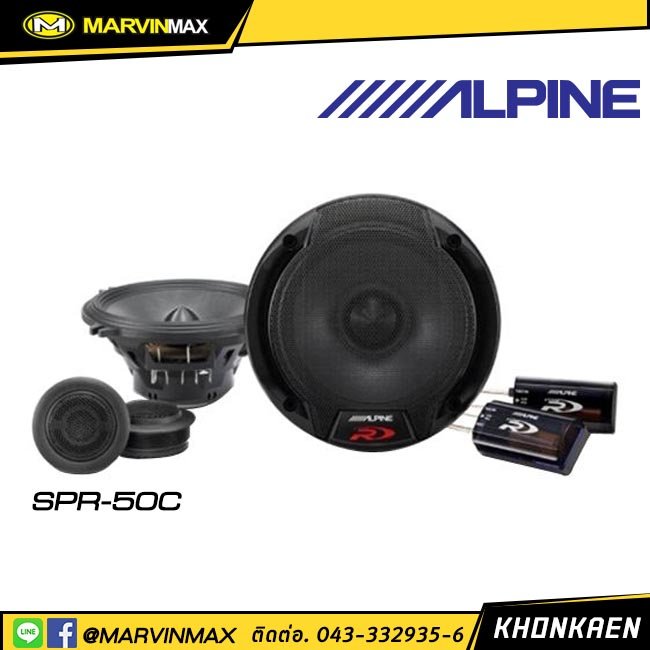

ALPINE SPR-50C

GENERAL
Sensitivity: 86dB /W(1m)
Impedence: 4 Ω
Frequency Response: 70Hz - 29kHz
POWER HANDLING
Power Handling Capacity (Peak): 300 Watts
Power Handling Capacity (RMS): 100 Watts

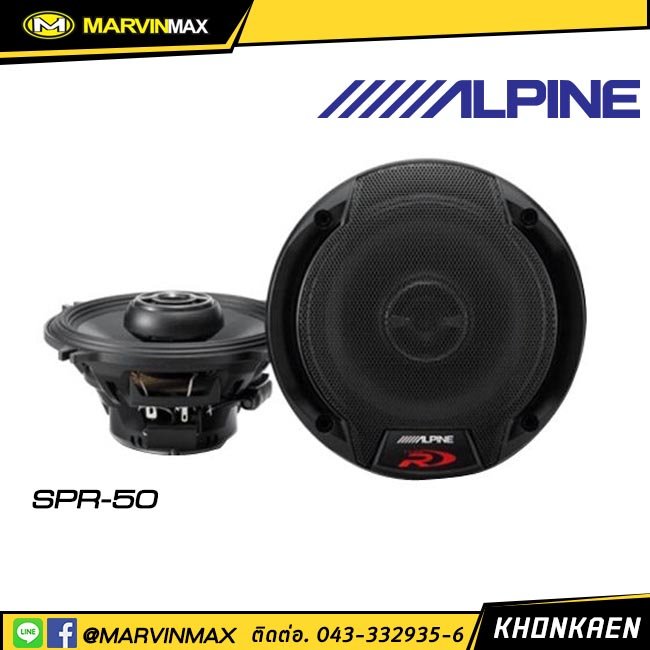

ALPINE SPR-50

GENERAL
Sensitivity: 87dB /W(1m)
Impedence: 4 Ω
Frequency Response: 70Hz - 29kHz
POWER HANDLING
Power Handling Capacity (Peak): 270 Watts
Power Handling Capacity (RMS): 90 Watts

ALPINE SPJ-691C3

GENERAL
Frequency Response: 30Hz - 30kHz
4 ohm Impedance
70.4 mm Mounting Depth
POWER HANDLING
400W Peak Power Handling
60W RMS Power Handling

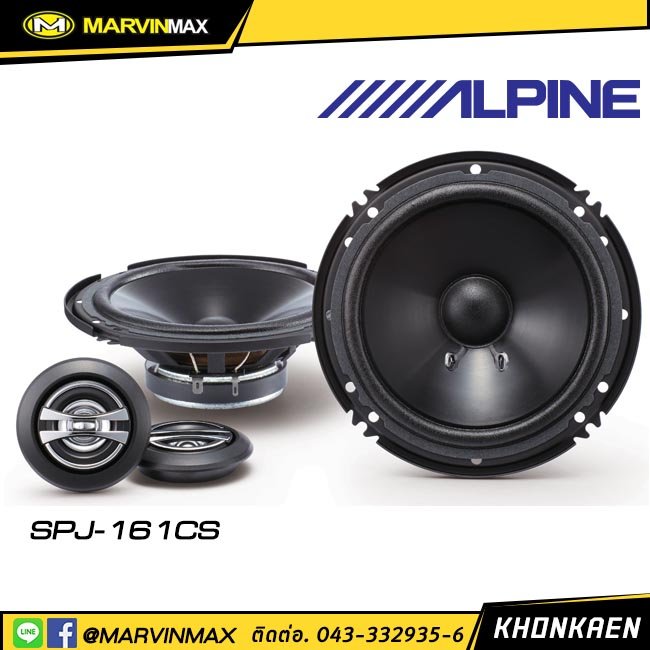

ALPINE SPJ-161CS

GENERAL
6” 2-way components speaker type
2 Grille,Tweeter Stand ,mounting kit and Cushion
Speaker cable, Rubber Gasket
SPECIFICATION
Woofer Unit 30Hz – 30kHz Effective Frequency Range
250 / 50 WRMS Power
90dB Sensitivity
Normal black cone
86dB ± 2dB
Copper VC wire type
Ferrite Magnet
Tweeter Unit 5 – 20 KHz Effective Frequency Range
PEI diaphragm Material
Copper VC Wire type
Nd-Fe-B Magnet material

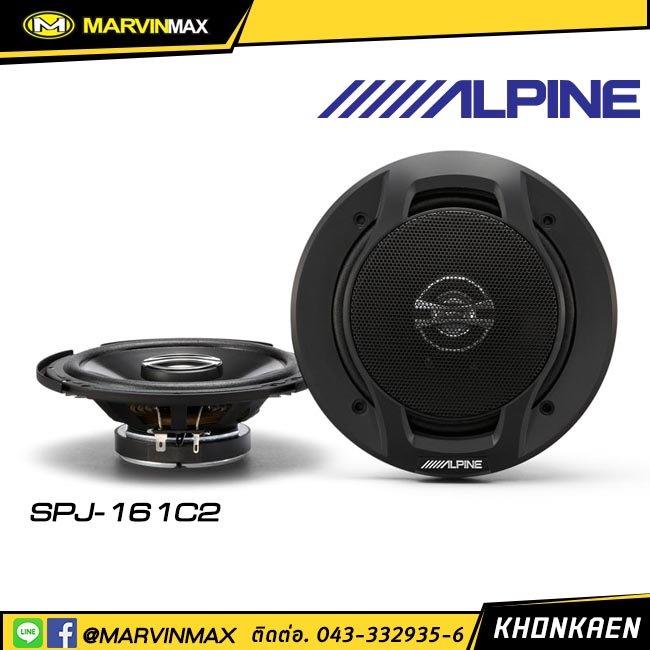

ALPINE SPJ-161C2

GENERAL
Frequency Response: 30Hz - 30kHz
4 ohm Impedance
44mm Mounting Depth
POWER HANDLING
250W Peak Power Handling
50W RMS Power Handling

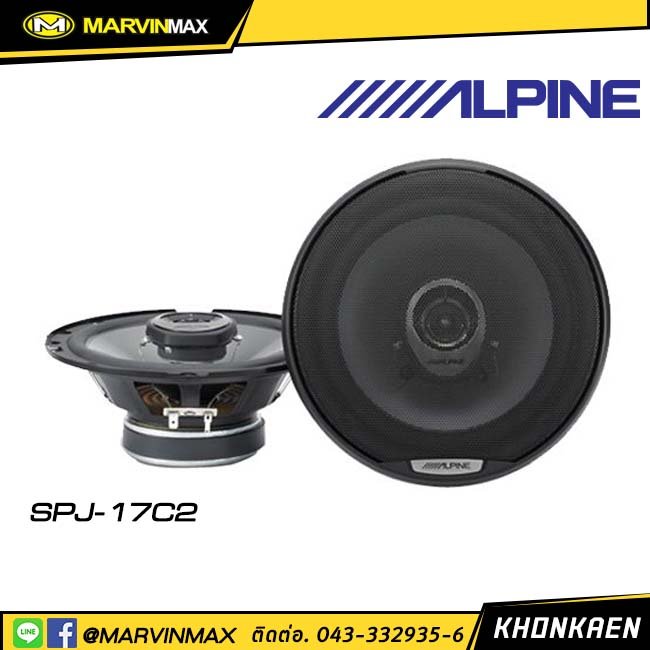

ALPINE SPJ-17C2

GENERAL
Frequency Response: 35Hz - 25kHz
4 ohm Impedance
60mm Mounting Depth
POWER HANDLING
200W Peak Power Handling
40W RMS Power Handling

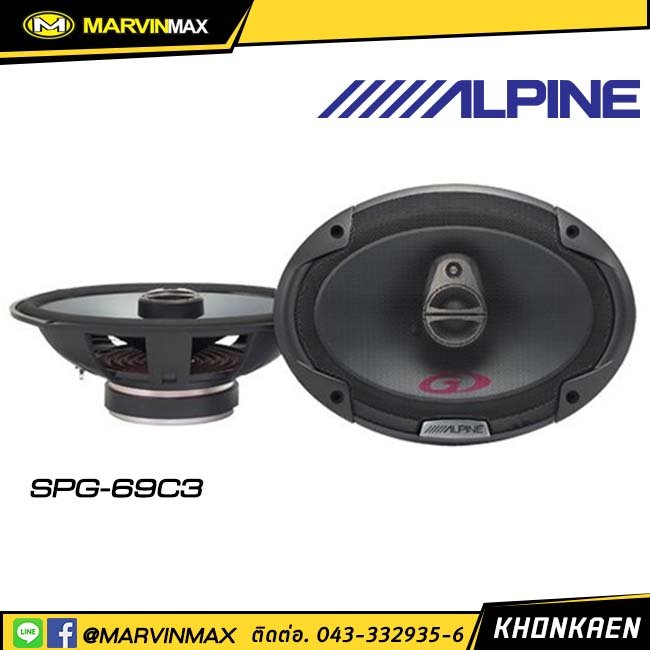

ALPINE SPG-69C3

TWEETER
Tweeter Type: 11mm PI Dome Tweeter
Magnet Material: Neodymium Magnet
MIDRANGE
Midrange Type: 25 mm Silk Soft Dome Midrange
Magnet Material: Neodymium Magnet
WOOFER
Cone Material: Polypropylene Cone Pearl Mica Injection
Voice Coil Type: Square Voice Coil Wire
Magnet: Ferrite Magnet
Frame: Injection Mold Frame
Design: Ultra Long Excursion Design

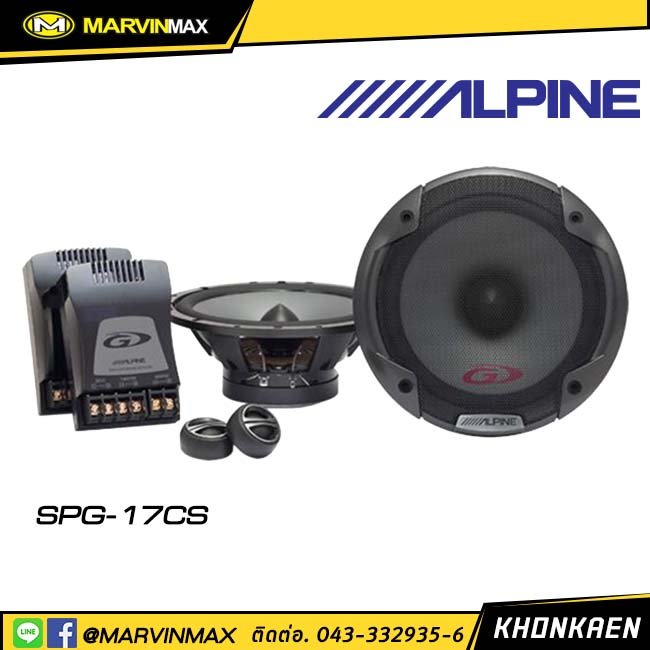

ALPINE SPG-17CS

TWEETER
Tweeter Type: 20mm Silk Soft Dome Tweeter
Application Type: Flush/Surface Swivel Mount
Magnet Material: Neodymium Magnet
WOOFER
Cone Material: Polypropylene Cone Pearl Mica Injection
Voice Coil Type: Square Voice Coil Wire
Magnet: Ferrite Magnet
Frame: Injection Mold Frame
Design: Long Excursion Design

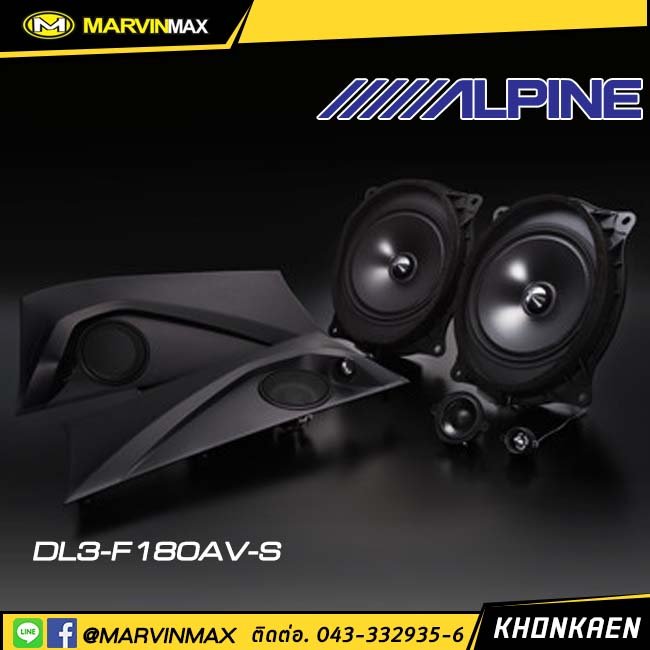

ALPINE DL3-F180AV-S

3-way components
Max power handling (W) 160 W
RMS power handling (W) 40 W
Frequency response (Hz) 25 Hz - 70 KHz
Sensitivity (dB/W/m) 91 db/W/m
Nominal impedance (Ohm) 4 Ohm
Size : 1.6 cm
Structure : Horn type
Diaphragm : PEI
Magnet : Neodynium Magnet (Φ15.0-t1.7)
Voice coil wire : CCAW (Copper Clad Aluminium Wire)
Horn section Material : Resin (ABS)
Horn section finishing : Vapor Deposition + Top Coat
Phase plug material : Resin (ABS)
Phase plug finishing : Vapor Deposition + Top Coat
Terminal : Coat Withdrawal (#110)、200mm、0.3sq
Cushioning : Poly foam

ALPINE DL3-F180AV-S
